YILMAZ ACK550

Machine Subcategory

Semi-Auto Circular Saws

Machine Accessory

This machine is an accessory

Overview

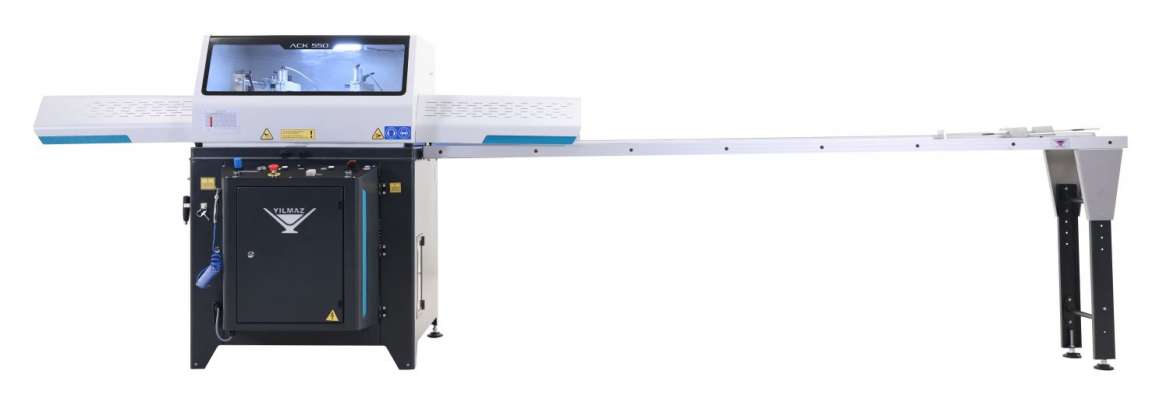

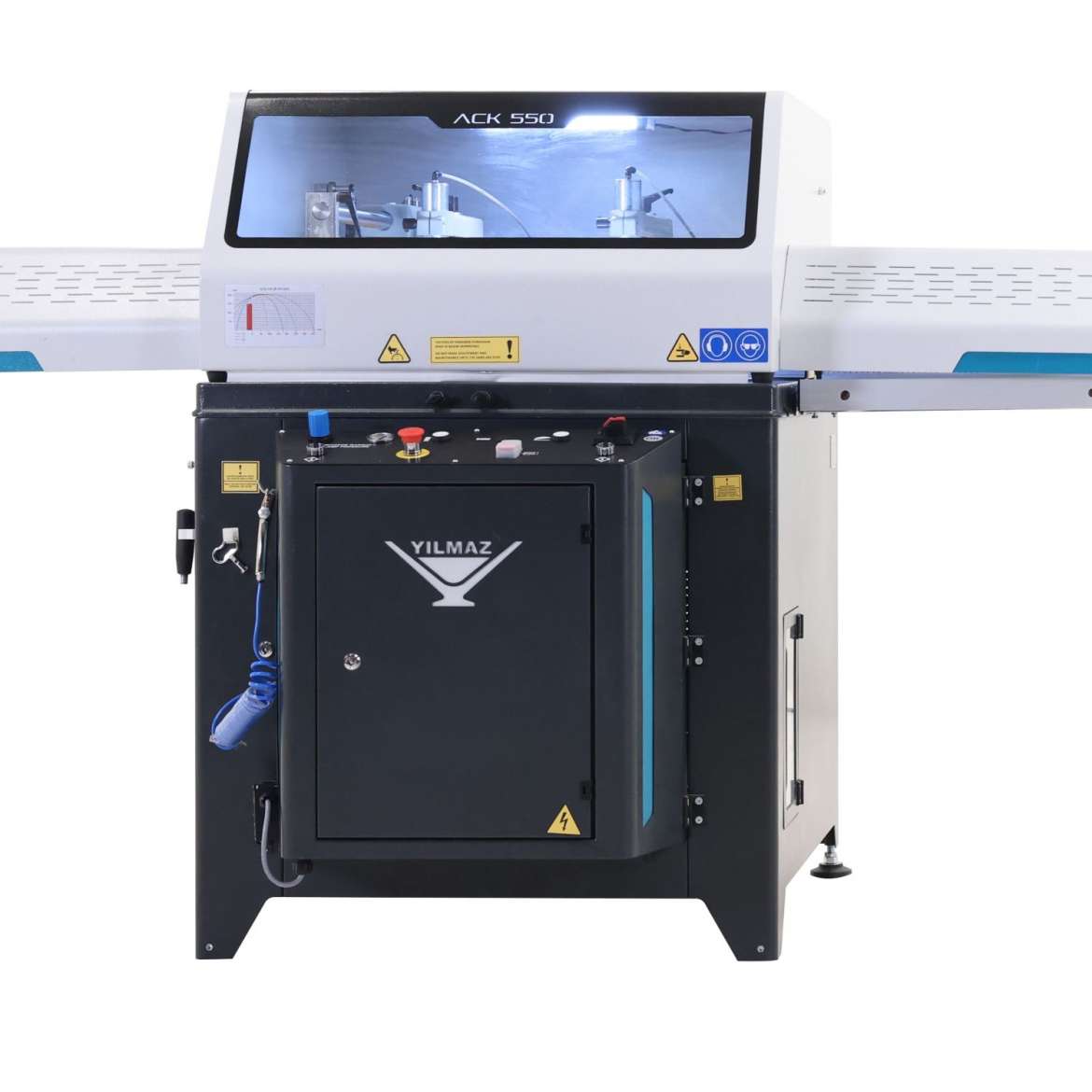

ACK 550 is designed for the straight or angular cutting operations of large size aluminum profile materials by means of Ø 550mm diameter saw blade.

Standard Specification

  • Two-hand run safety operation
  • Location points at 75°,60°,45°,30°,22.5°,15°,0° both left and right
  • Pivoting range from -75° left to +75° right infinitely adjustable
  • Hydro-pneumatic saw feed
  • Adjustable saw blade feeding speed
  • Interior LED lighting
  • Pneumatically opening safety guard

STANDARD ACCESSORIES

  • Equipped with saw blade Ø 550 mm
  • Spray saw blade lubrication system

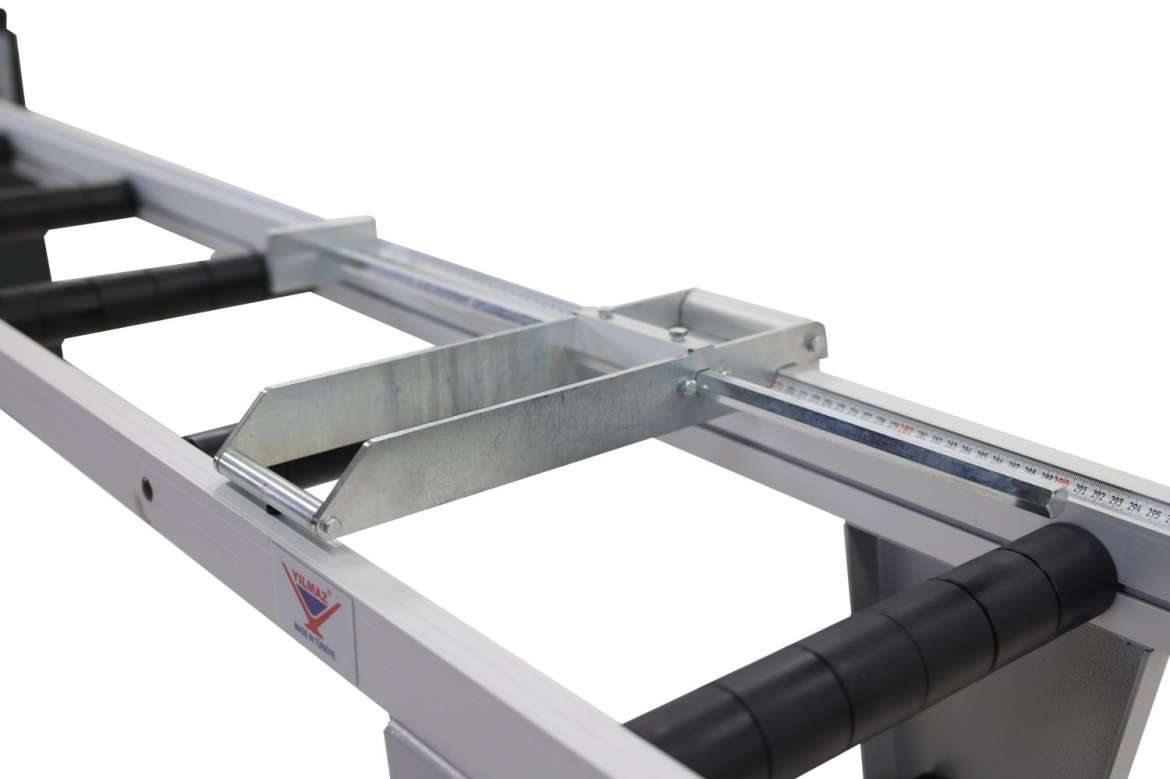

  • MKN 301 roller conveyor (3 m)
  • 2 x vertical and 1 x horizontal clamps
  • Air gun

Optional Features

  • Additional saw blade Ø 550 mm
  • VCE 1570 Chip vacuum extractor
  • SKN 300-450-600 conveyor
  • DKN 302-452-602 conveyor
  • 1 x horizontal clamps
  • Laser marker set for 90 ° of cutting operation

YILMAZ ACK550 Technical Specifications

Manufacturer Yilmaz
Machine Type Aluminium
Dimensions 550mm × 30mm bore ×
Motor 4kW
Weight 373 kgs net
Material Type(s) Section
