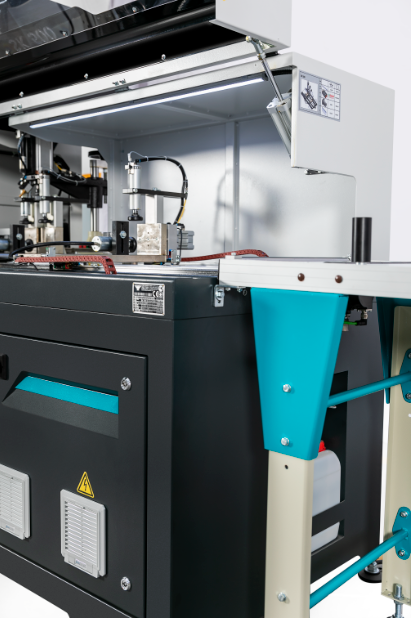

Yilmaz SK 500

Machine Subcategory

Automatic Coldsaw

Detailed Description

  • Suitable for high-volume cutting of aluminum profiles for window manufacturing and industrial applications
  • High precision servo motors and internationally recognised components
  • Time saving by means of servo controlled workpiece infeed speed and saw blade stroke
  • 500mm Diameter Blade with 4kW Motor
  • Horizontal and vertical clamping of the workpiece during the sawing operation
  • Automatic table retraction feature that moves the cut material a small amount after cutting to create a gap for the blade retraction to prevent 'back cutting'
  • High cutting accuracy by means of the robust mechanical structure
    Programmable spray saw blade lubrication system via control panel
  • Large memory capacity for cutting programs
  • The machine shuts down automatically after reaching the requested quantity
  • Operator safety guard equipped with interlock switch
  • Feeding distance per cycle (5–1,000 mm) No limit for maximum dimension multifeed



  • Roller conveyor
  • Equipped with saw blade Ø 500 mm
  • Spray saw blade lubrication system
  • Ball screw lubrication system
  • Air gun
  • 3x horizontal clamps

Optional Features

• Additional saw blade with Ø 450 mm
• VCE 1570 Chip vacuum extractor
• Bundle Cutting Kit
• Drilling Unit (D Version of Machine)

Get in touch +44 (0)1536 410999

protected by reCAPTCHA

Yilmaz SK 500 Technical Specifications

Manufacturer Yilmaz
Machine Type Bandsaw
Operation Type Automatic
Material Type Aluminium
Materials Sectons
Material Type(s) Section
Material(s) Sections, Non-Ferrous
