Section Laser Cutting

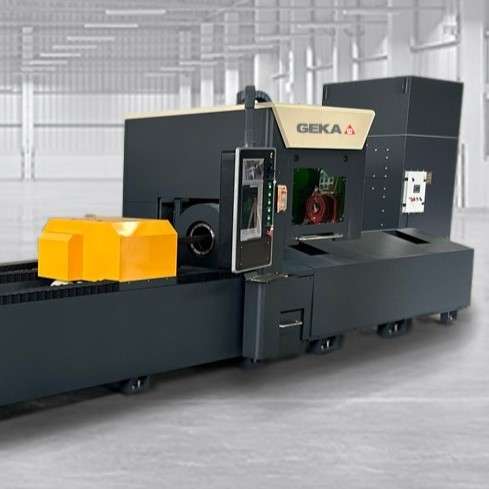

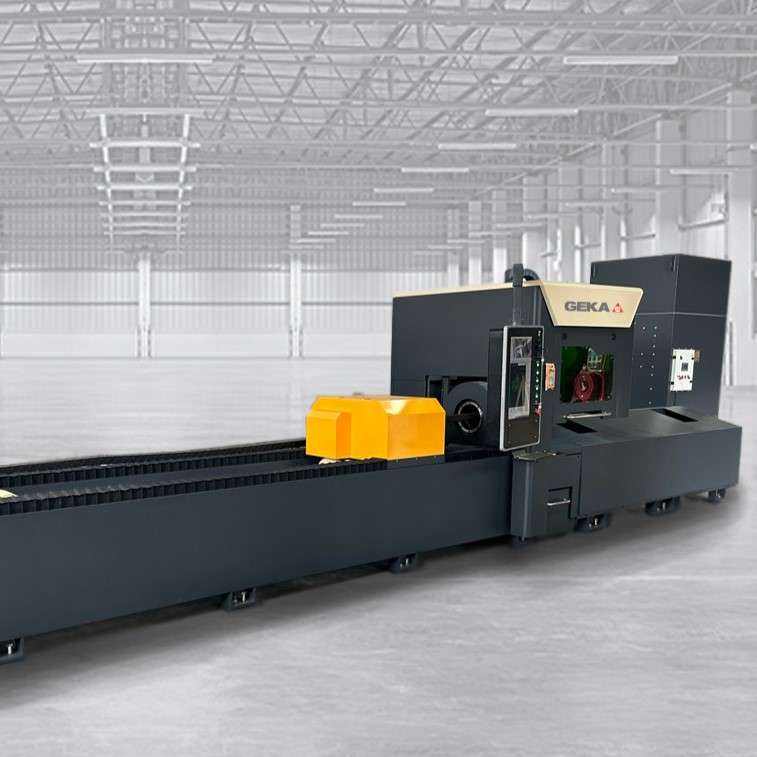

The GK LASER is designed to offer precise, efficient, and versatile solutions for cutting metal tubes of various shapes and sizes. GK Laser can process a wide range of profiles, including round, square, and rectangular tubes, as well as irregular shapes like angle profiles, UPN, and oval tubes, with a cutting capacity for tubes from 6 to 12 metres in length and up to 350mm square capacity.

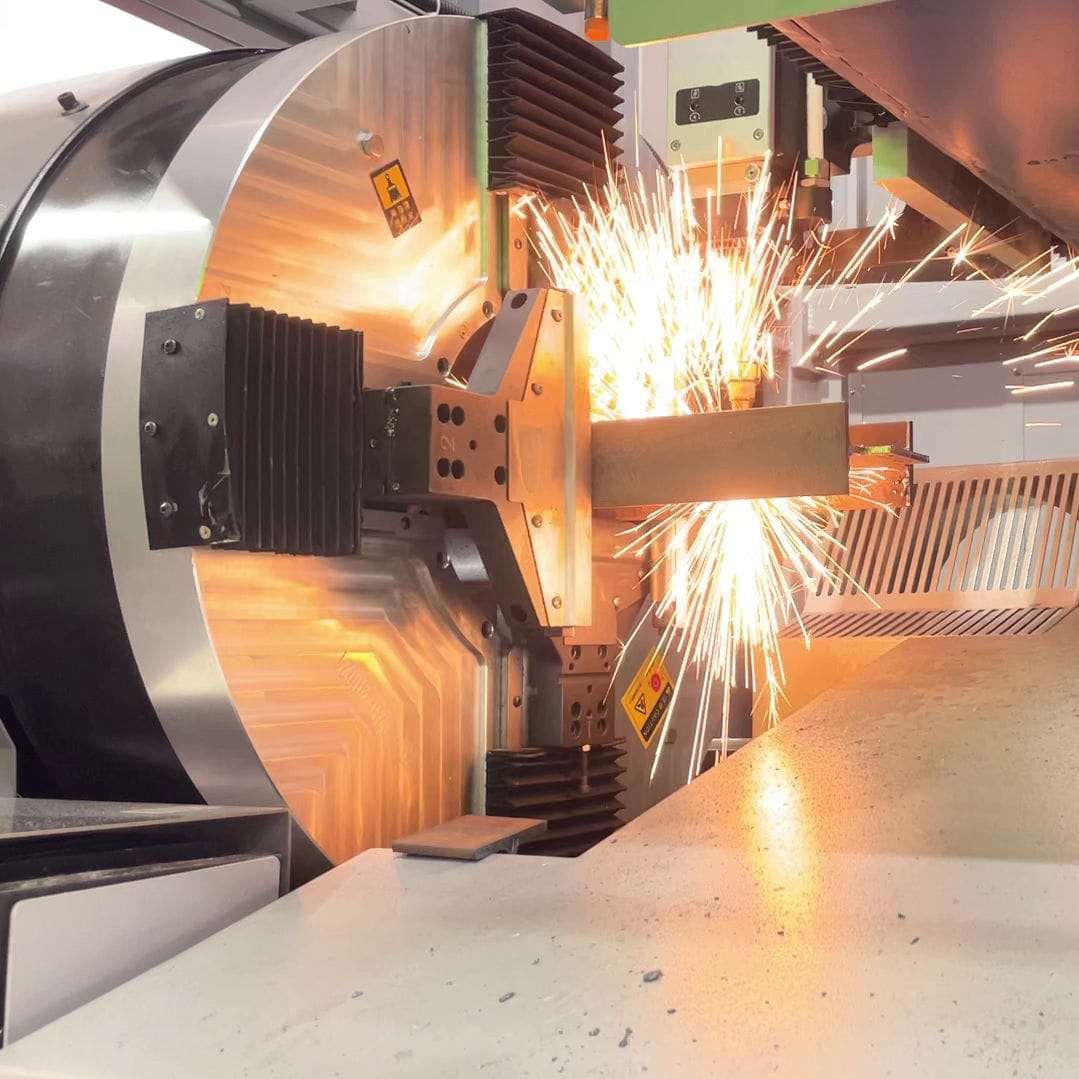

Equipped with advanced fibre laser technology, the GK LASER provides clean and accurate cuts while minimising material waste to just 150 mm thanks to its compact rear chuck design. The reinforced steel structure ensures durability, while the innovative cam-support system guarantees stability when processing long tubes, preventing deformation during cutting. Additionally, the machine is designed for ease of use, featuring an intuitive control panel and an internal cleaning system that maintains cutting quality over time.
| TUBE CATEGORY | Round, Square, Rectangular, Oval, Triangular etc.. |
| PIPE DIMENSIONS | Ø20-365mm, L = 6m/9m/12m Ø and L both optional |
| FIBER LASER POWER | 6,000W - 30,000W |
| MAX. ACCELERATION | 0.8G |
| ROTARY SPEED | 80r/min |
|
POSSITIONING ACCURACY |
±0.03mm/m |
| REPOSITIONING ACCURACY | ±0.05mm |
| POWER SUPPLY | 380V 50HZ / 380V 60HZ / 220V 60HZ |
| DIMENSIONS | 26445*2800*3100 |
| Manufacturer | GEKA |
| Machine Type | Metal Forming |
| Operation Type | Laser |
