Mega CS-160N

Machine Subcategory

Automatic Carbide Circular Saws

Overview

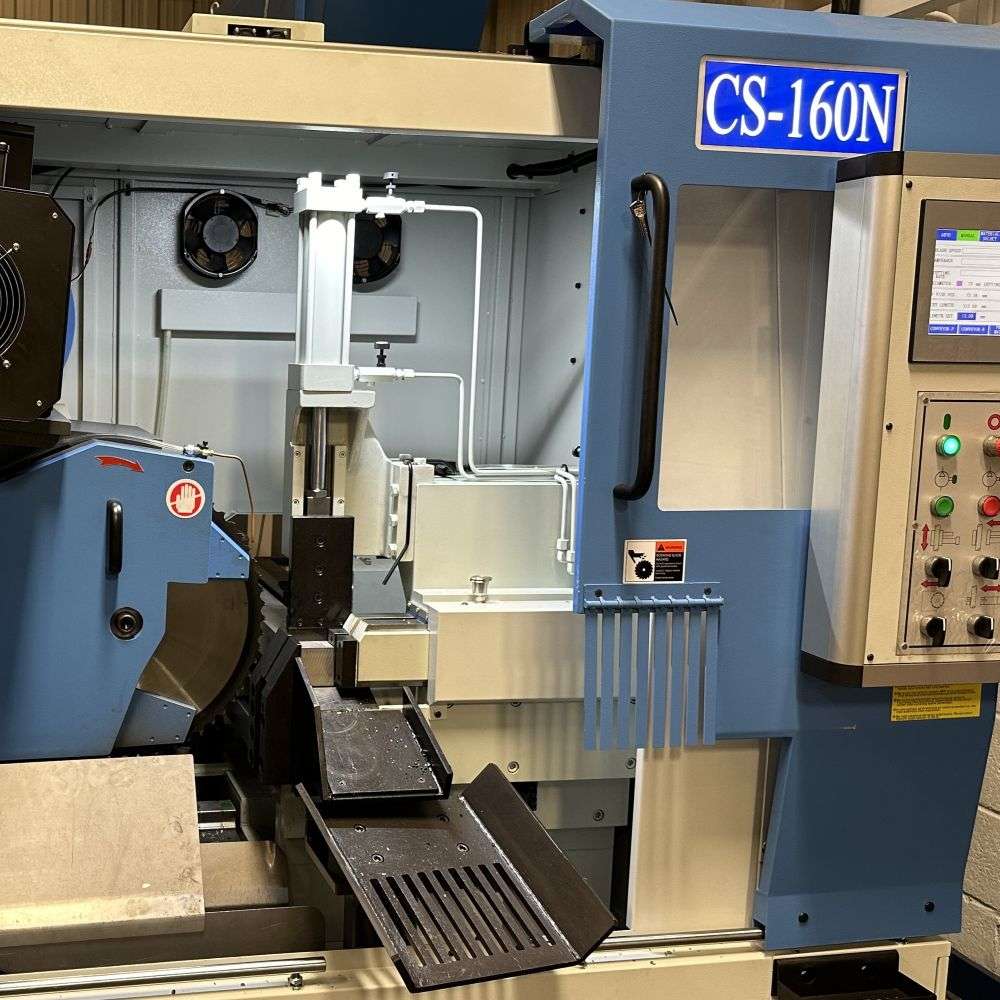

The ‘NEW’ Mega CS-160N is a extra heavy duty powerful precision cutting machine with excellent repeatability by means of an NC controlled servo motor.
Designed for fast cutting of solid bar and tube, providing a clean, swarf free billets.

Standard Specification

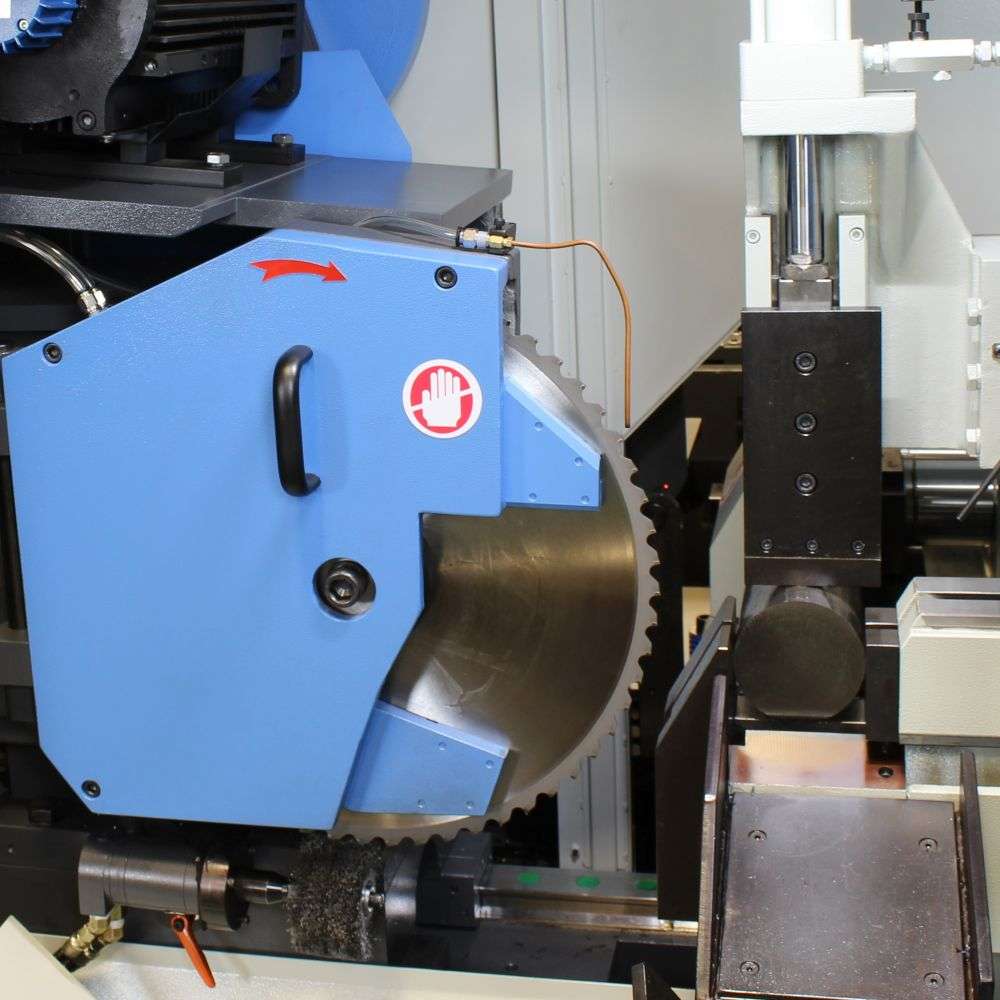

  • Heavy duty gear transmission designed for high speed carbide blade sawing
  • Anti backlash gearbox specifically designed for carbide sawing to minimize vibration for optimum cut quality and blade life
  • NC servo motor and ball screw feeder for precision accuracy and quick set up
  • Integrated magazine feeder with easy adjustment of material size
  • Oil mist spray for virtually dry cut and superb finish
  • Automatic trim cut separation chute
  • Top clamp to enable 2 bar cuttting and reduce vibration

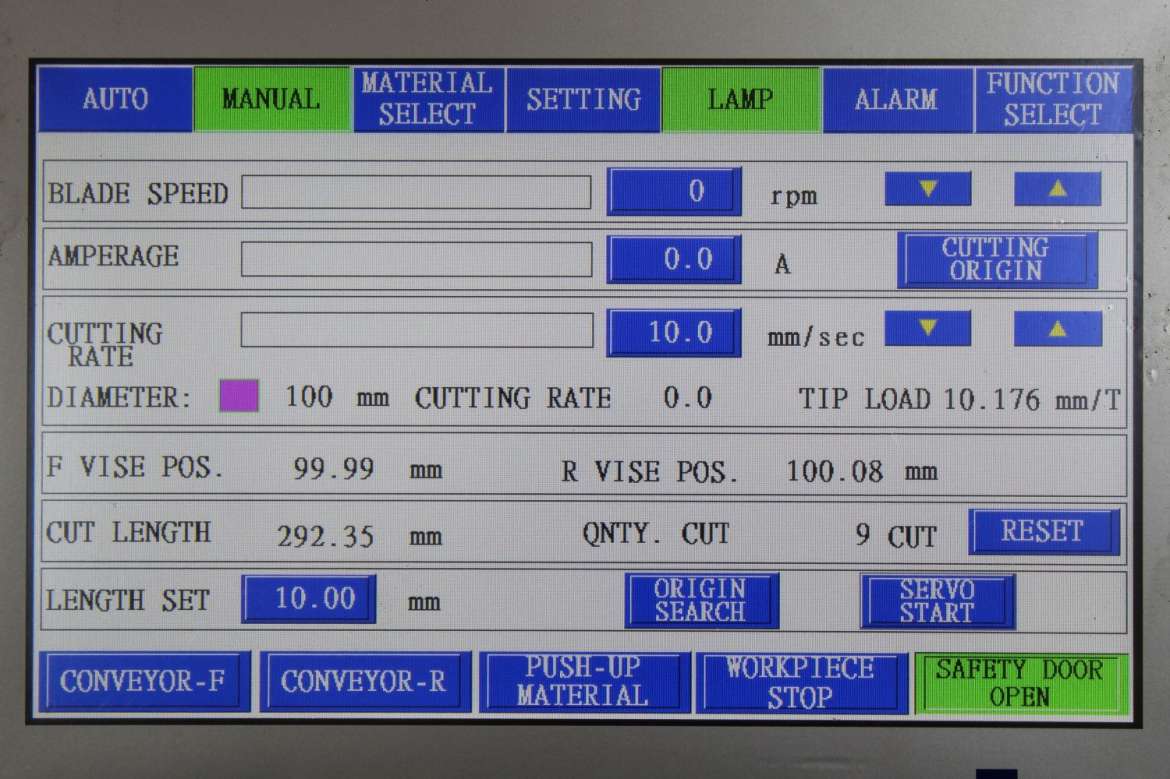

  • Colour touch screen control with preset material library
  • Hydraulic rear vice assembly mounted on chrome rails.
    NC servo motor and ball screw feeder for precision & accuracy



Optional Features

  • Long cut-off pieces unloading table
  • Chain belt magazine table for flat work-piece

Get in touch +44 (0)1536 410999

protected by reCAPTCHA

Mega CS-160N Technical Specifications

Manufacturer Mega
Machine Type Bandsaw
Dimensions 460mm Ø × 50mm bore × 2.7mm
Feeding Stroke 20~600mm Single Feed
Material Type(s) Solid
90°45° Left45° Right60° Left60° Right
Solid Round 90 25~160
Solid Rectangle 90 25~120
