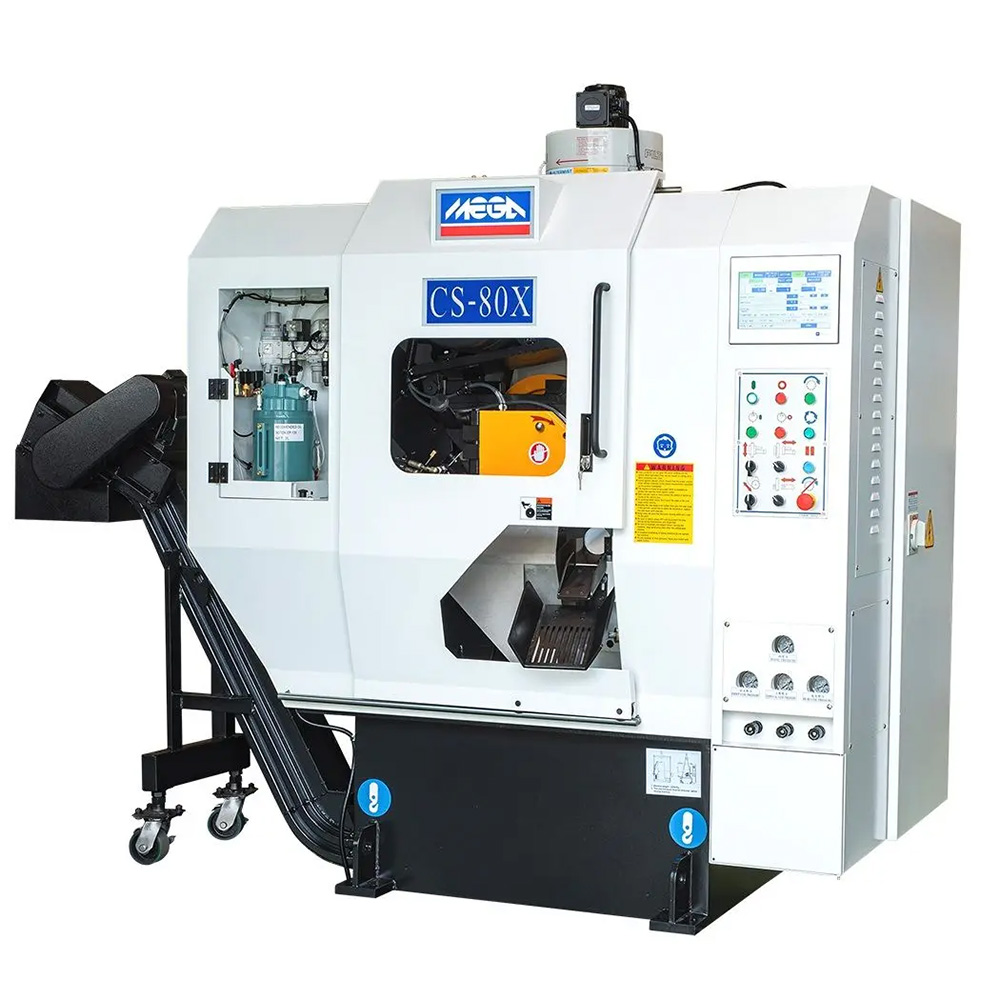

MEGA CS-80X

mega cs80x

Machine Subcategory

Automatic Carbide Circular Saws

Overview

NC High Speed Automatic Carbide Circular Sawing machine, designed for very fast cutting of solid bar providing a clean, swarf free billet

Standard Specification

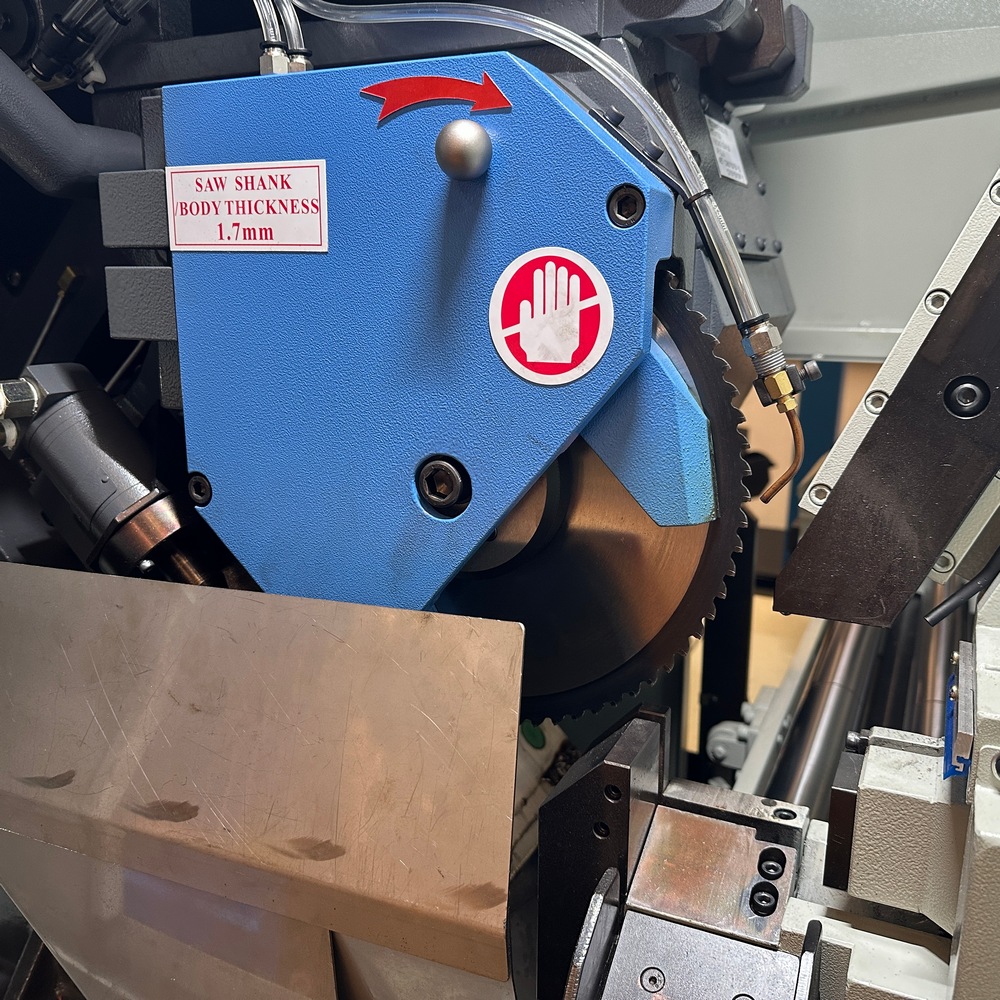

Heavy duty anti-backlash gear transmission designed for high speed carbide blade sawing
Designed to minimize vibration for optimum cut quality and blade life

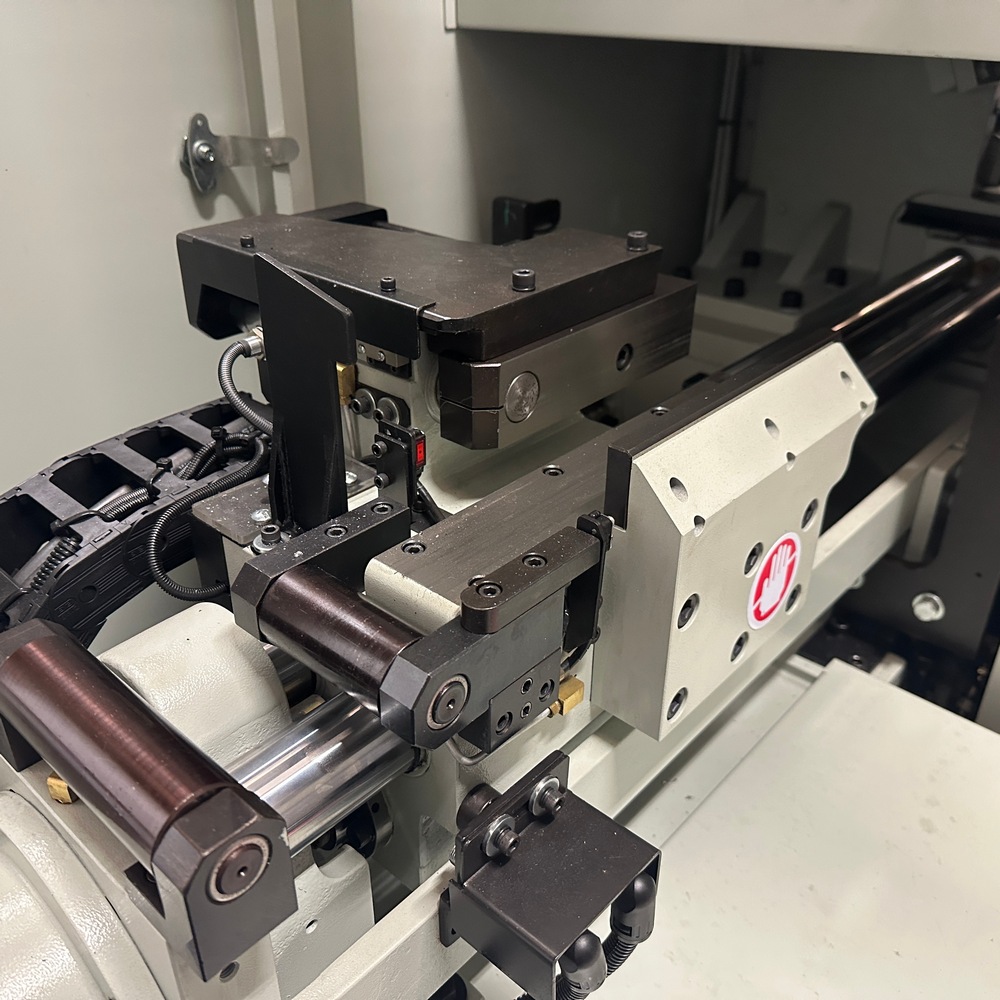

NC servo motor and ball screw feeder for precision accuracy and quick set up
Integrated magazine feeder with easy adjustment of material size

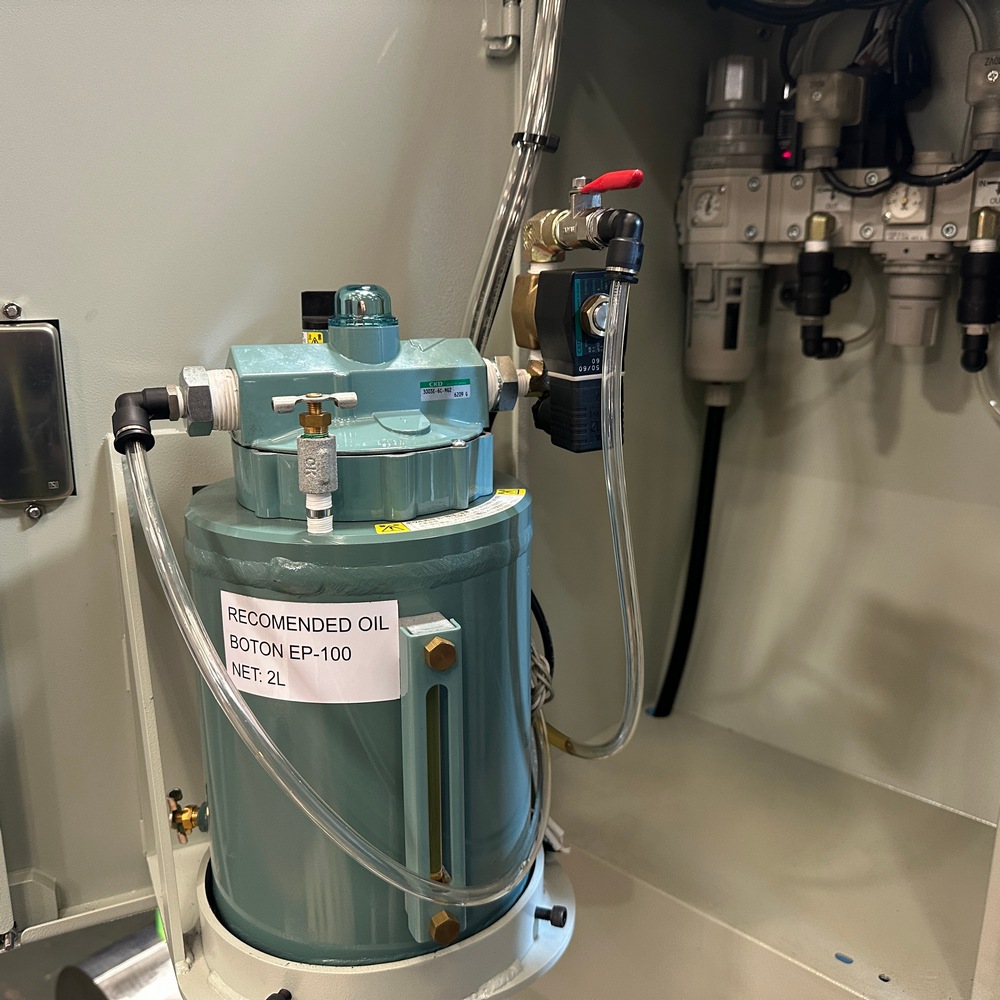

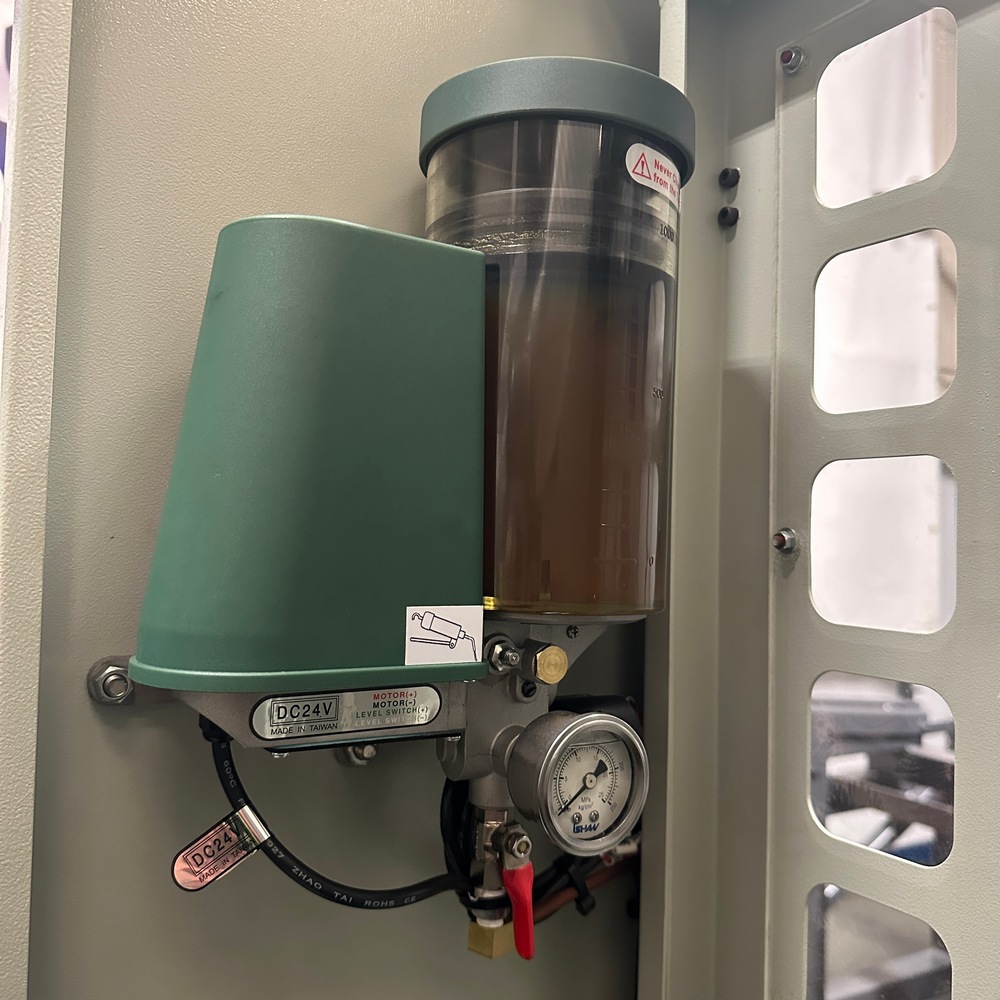

Oil mist spray for virtually dry cut and superb finish

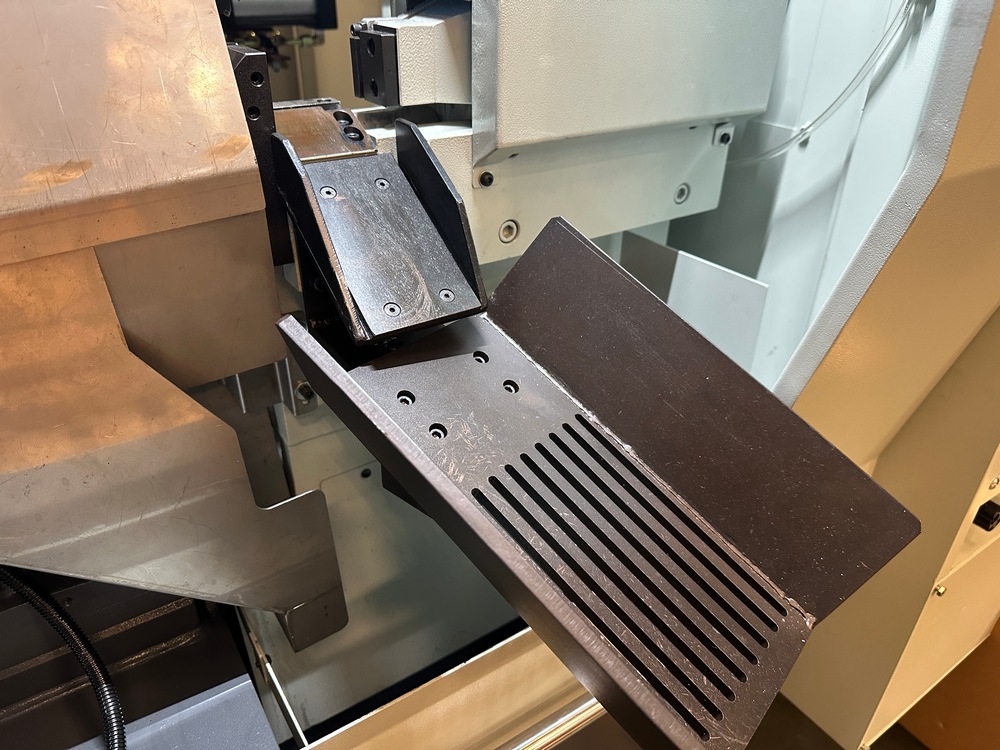

Automatic trim cut separation chute

Optional Features

Auto chip conveyor
Long cut-off pieces unloading table
Bar stock reservoir and loader
Chain belt magazine table for flat work-piece

Get in touch +44 (0)1536 410999

Name

Email

Company

Address

Post Code

Telephone

Message

protected by reCAPTCHA

PrivacyTerms

MEGA CS-80X Technical Specifications

Manufacturer	Mega
Machine Type	Bandsaw
Dimensions	285mm Ø × 32mm bore × 2.0mm
Material Type(s)	Solid

	90°	45° Left	45° Right	60° Left	60° Right
Solid Round 90	80mm
Solid Square 90	60mm

PDF Download

Download Datasheet

Download the datasheet for the MEGA CS-80X

Quote Bubble

Contact Us

Call us during office hours (8:30am – 5pm, Mon – Fri) for assistance with choosing the best machine for the job

Blades & Consumables

Order blades for the MEGA CS-80X direct from Prosaw
