Karmetal Cyclone 100

Machine Subcategory

Automatic Carbide Circular Saw

Overview

NC High Speed Automatic Carbide Circular Sawing machine, complete with 6m magazine loader. Designed for very fast cutting of solid bar providing a clean, swarf free billet

Standard Specification

6m Magazine loader
HMI Touch Control Panel

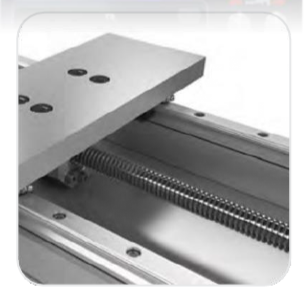

Servo-controlled body movement.
Servo-controlled rear clamp
Hydraulic Front and Rear Vises
Adjustable Vise Pressure
Tracked Type Chip Conveyor
Blade Cleaning Brush System
Micromolecular Cooling System
Automatic Slide Lubrication Unit
Automatic Cutting Separation Slide

Get in touch +44 (0)1536 410999

Name

Company

Address

Post Code

Telephone

Message

protected by reCAPTCHA

PrivacyTerms

Karmetal Cyclone 100 Technical Specifications

Manufacturer	Karmetal
Machine Type	Circular
Dimensions	Ø360 × ×
Motor	15 kW
Motor	1.5 kW
Feeding Stroke	Front - 20mm / Rear
Weight	3600 kg
Material Type(s)	Solid

	90°	45° Left	45° Right	60° Left	60° Right
Solid Round 90	15-100mm
Solid Square 90	15-90mm

Download Datasheet

Download the datasheet for the Karmetal Cyclone 100

Download
