ILERI TEKNIK V315 HX

Machine Subcategory

Semi-Auto Circular Saws

Overview

The Ileri Teknik V315HX is a heavy duty semi-automatic circular saw designed for fast cutting of different sizes of metal sections for small to medium quantity batch production. The hydro-pneumatic operation of the saw head provides a smooth downfeed rate for fast cutting and optimum blade life. It has mitre cutting capabilities in both directions and is fitted with a cutting speed regulator.

Standard Specification

Very heavy duty
Foot switch actuation
Automatic head stroke, can be adjusted for different material sizes
Heavy duty gearbox with double set of helical gears
Robust, double-hinged pivot
Easy, positive 45° mitre left and right
Automatic pneumatic vice

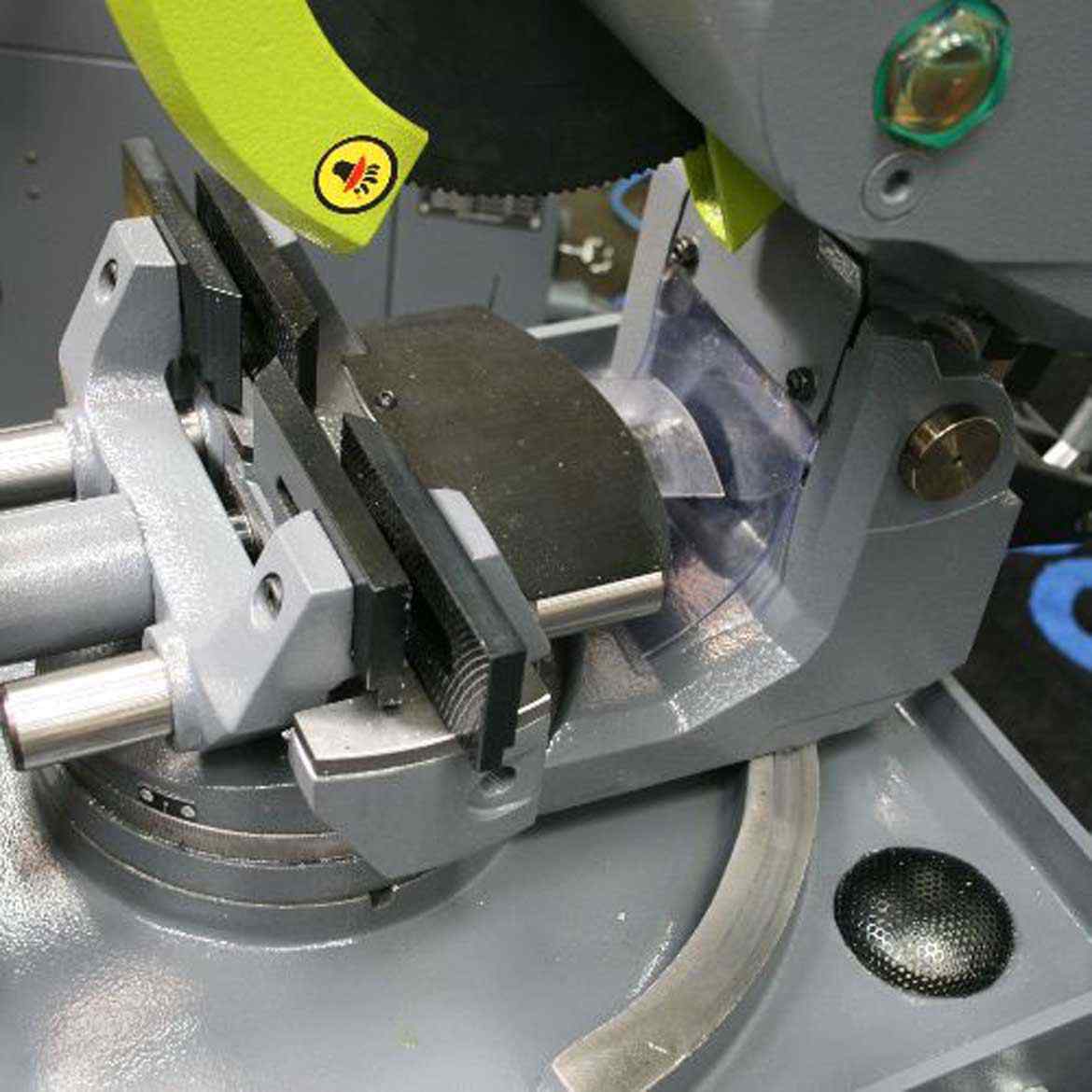

Split vice construction ensures material is gripped on both sides of the cut
Self-centring of vice optimises cutting position
2 Speed main motor
Adjustable bar stop 400mm
Internal recirculating coolant pump
Comprehensive safety specification
Coolant tank with integral chip tray

Get in touch +44 (0)1536 410999

Name

Company

Address

Telephone

Message

protected by reCAPTCHA

PrivacyTerms

ILERI TEKNIK V315 HX Technical Specifications

Manufacturer	Ileri Teknik
Machine Type	Circular
Dimensions	315mm × 32mm bore ×
Motor	2.2kW
Coolant Motor	0.06kW
Weight	290 kgs net
Material Type(s)	Section

	90°	45° Left	45° Right	60° Left	60° Right
Round Section (mm)	100mm		90mm
Rectangular Section Horizontal (mm)	120x60mm		90x60mm
Square Section (mm)	85x85mm		80x80mm
