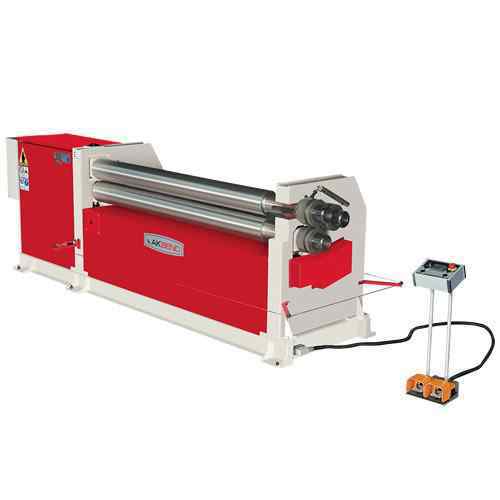

AKYAPAK ASM-S 3 Rolls
Machine Subcategory
Asymmetrical 'Initial Pinch' Plate Rolling Machines
Overview
Machines available:- 3mm to 8mm thick, 1.6 metre to 3.1 metres wide
Standard Specification
- Induction hardened rolls
- Motorised back roll (up-down motions)
- Lower roll moves up and down through hand wheel
- Cone bending device
- Body steel (St-52) construction
- Rolls are produced in special steel
- Machine designed in asymmetrical working principle
- Central rollers powered with electric motor + gearbox and gear system
- Swivelling top roll
- Separate control panel
Optional Features
- Digital display for back roll
- Lower roll with motor
- Extended rolls
- Profile rolls
- Driven back roll
AKYAPAK ASM-S 3 Rolls Technical Specifications
| Manufacturer | Akyapak |
|---|---|
| Machine Type | Metal Forming |
| Operation Type | Manual |
