BOMAR Proficut 275.230GANC
Machine Subcategory
Automatic Horizontal Bandsaw
Overview
The Bomar Proficut 275.230GANC is an automatic mitre bandsaw with NC controls ideal for sections and small solid material. Its saw bow rotates for mitre cutting to 60°. The hydraulic downfeed control benefits from an automatic cutting pressure control. The feeding length is 500 mm.
Standard Specification
- Heavy duty one piece bow
- Simple robust controls
- NC Controls
- Hydraulic down feed with automatic speed regulation

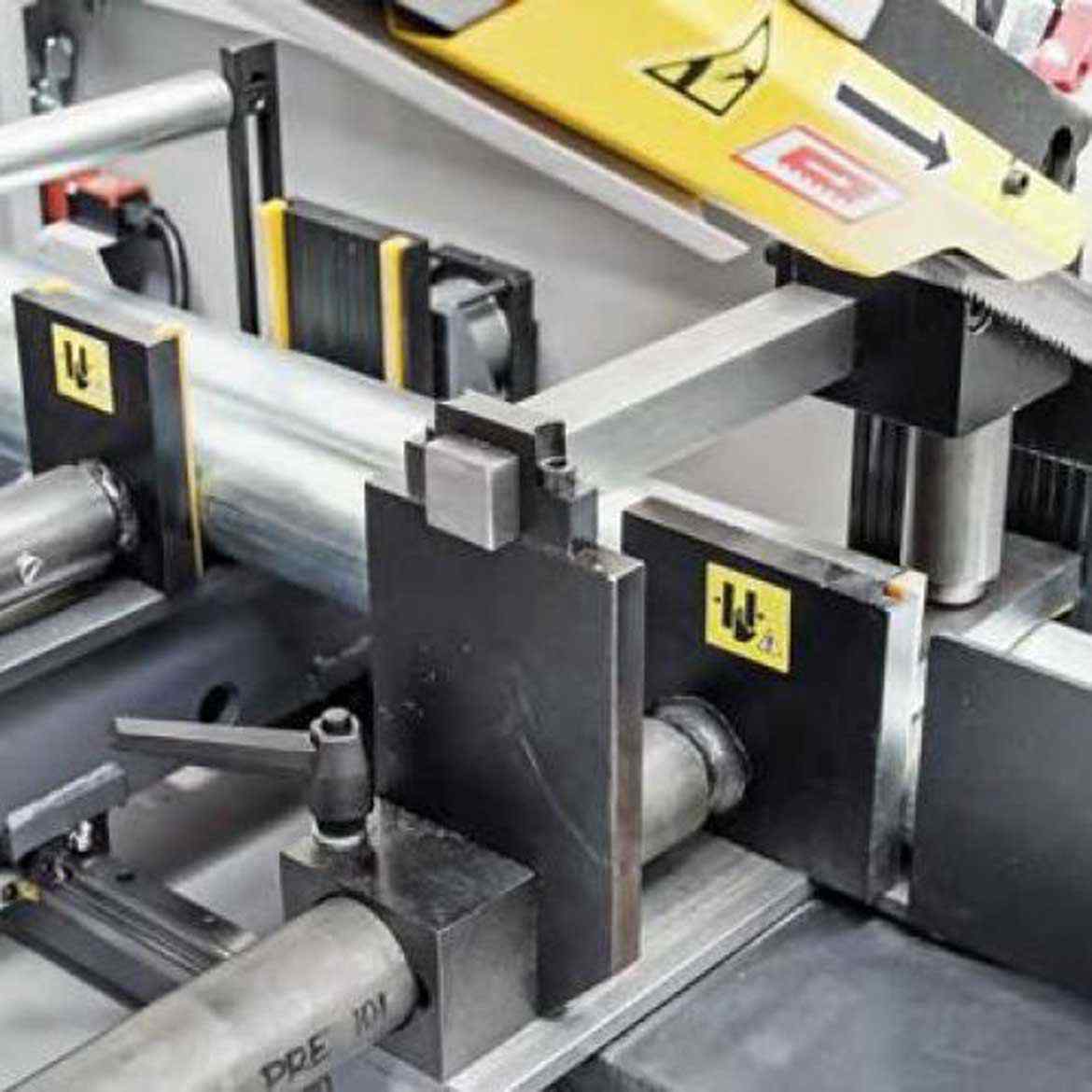

- Automatic multiple stroke vice feed with 500mm single pass length
- Heavy Duty gearbox unit
- 2 blade speeds 40 & 80 m/min
- Recirculating coolant pump

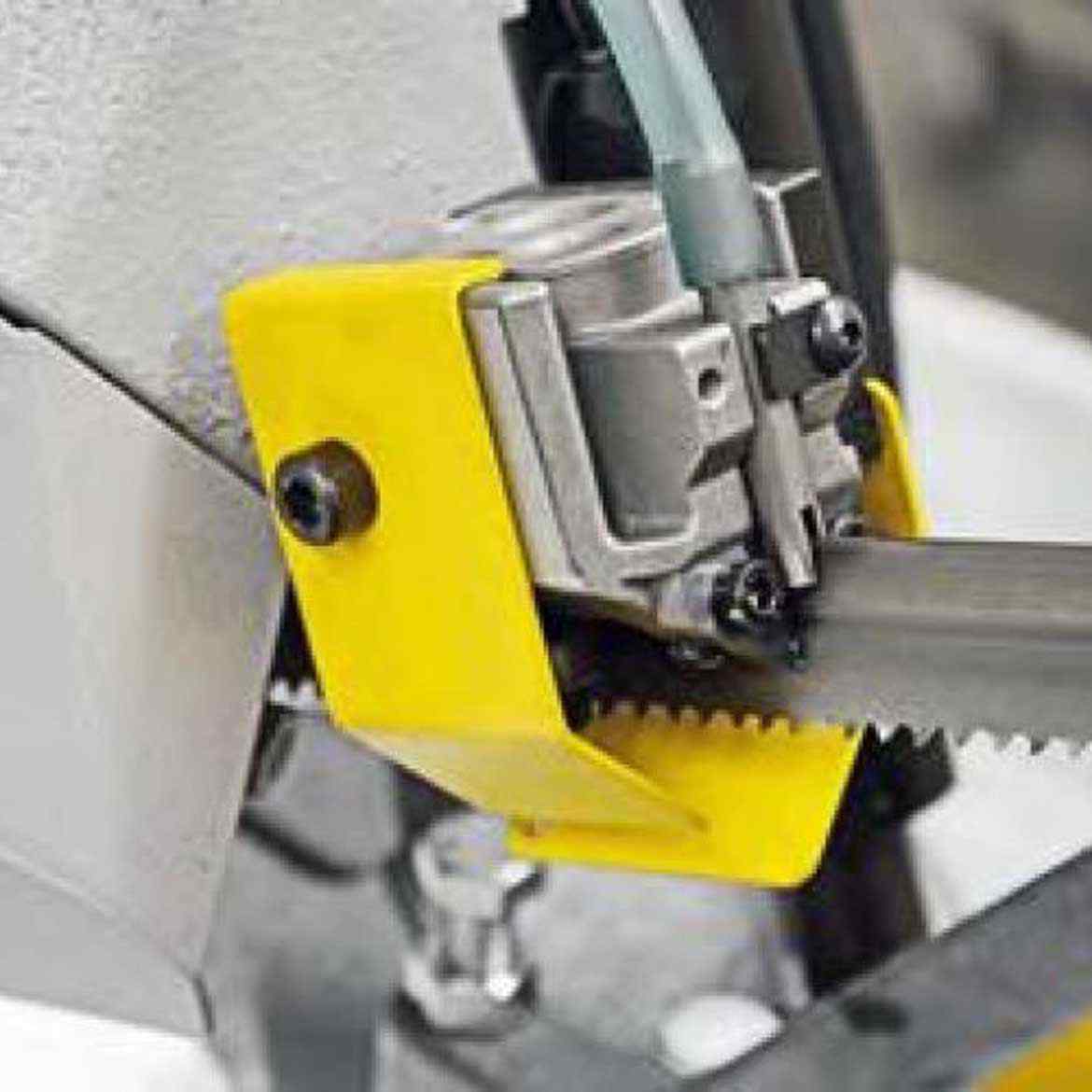

- Carbide blade guidance
- Comprehensive safety specification, guarding interlock, low voltage controls
- Automatic shutdown if blade breaks
- Manual setting of mitre angle
Get in touch +44 (0)1536 410999
BOMAR Proficut 275.230GANC Technical Specifications
| Manufacturer | Bomar |
|---|---|
| Machine Type | Bandsaw |
| Blade Size | 2720mm × 27mm × 0.9mm |
| Blade Speed | 2 speeds, 40 & 80 m/min |
| Motor | 1.1kW |
| Weight | 500 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 230mm | 190mm | 120mm | ||
| Rectangular Section Horizontal (mm) | 275x180mm | 190x150mm | 120x100mm |
