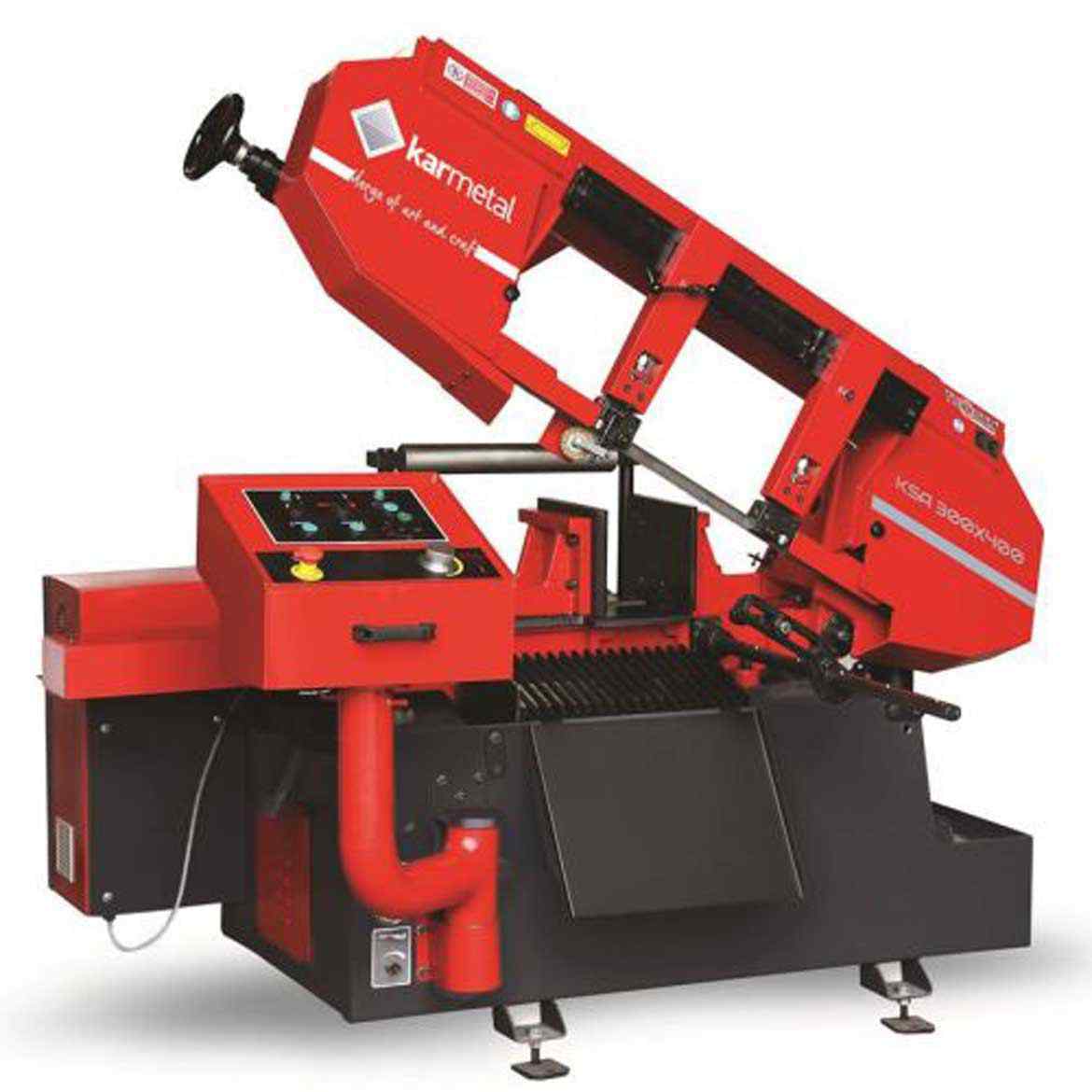

KARMETAL KSA 300×400
Machine Subcategory
Semi Automatic Horizontal Bandsaw
Overview
Semi-Automatic bandsaw designed for straight cutting sections and solid materials
Standard Specification
- Hydraulic vice for fast clamping
- Heavy duty blade tensioning unit with indicator
- Inverter controlled variable blade speed from 25 to 90 m/min
- Precision control hydraulic downfeed
- Heavy duty one-piece cast bow
- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm
- Re-circulating coolant pump
- Simple, robust controls
- Blade guard with electrical cut-out switch
- Heavy, stable machine base
- Material Infeed Table
Get in touch +44 (0)1536 410999
KARMETAL KSA 300x400 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 3850mm × 27mm × 0.9mm |
| Blade Speed | Inverter controlled variable speed 25 ~ 90 m/min |
| Table Height | 750mm |
| Motor | 2.2kW |
| Coolant Motor | 0.09kW |
| Weight | 900 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 300mm | ||||
| Rectangular Section Horizontal (mm) | 280x400mm | ||||
| Square Section (mm) | 280mm |
