KARMETAL WOS 600×700
Machine Subcategory
Automatic Horizontal Bandsaw
Overview

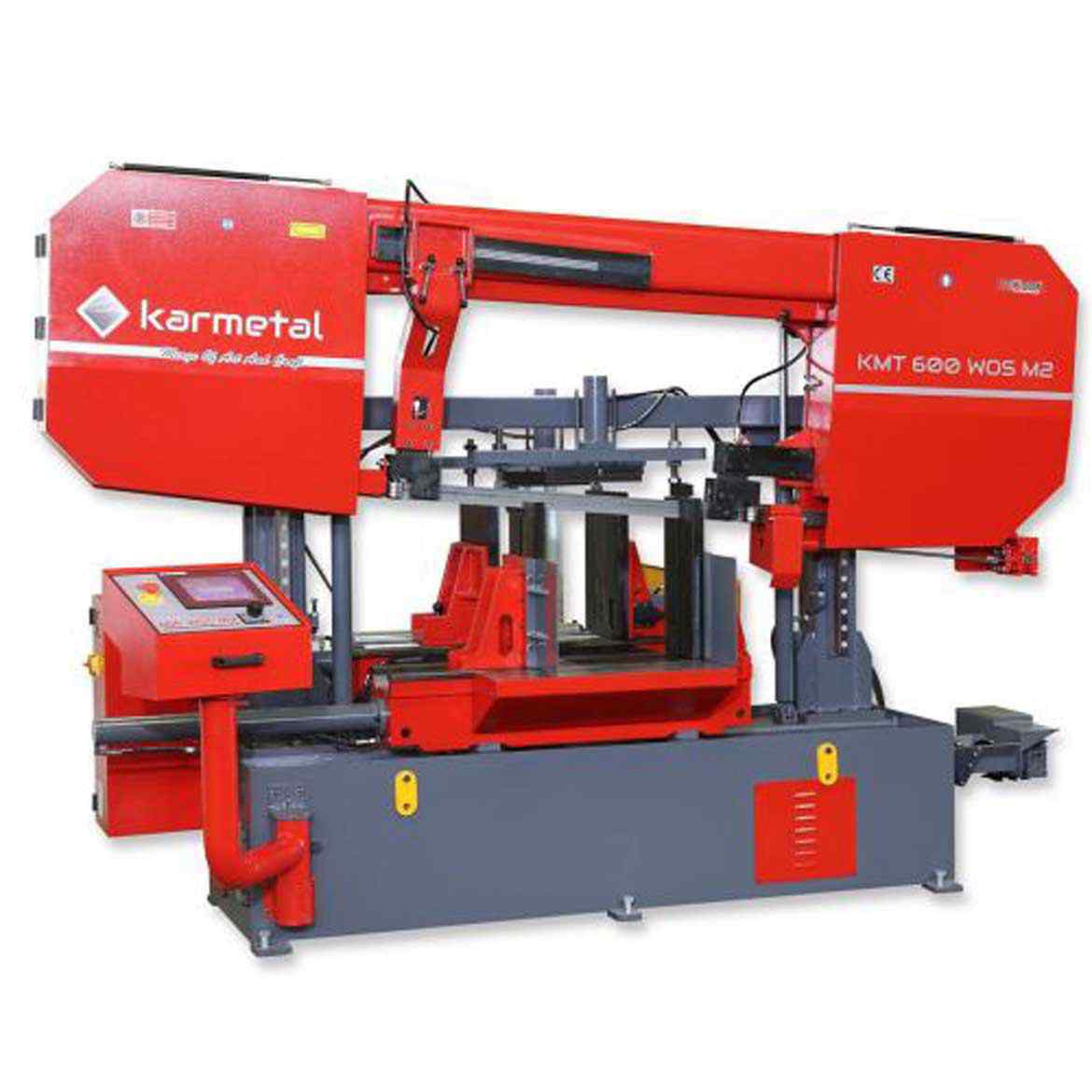

Very Heavy duty large capacity Vice Feed Automatic Bandsaw with bundle clamps. Touch Screen Controls and Roller table as Standard.
Standard Specification
- Very heavy duty twin column construction
- Split full stroke hydraulic vices, clamps material on either side of cut
- Inverter controlled blade speed from 22 to 100m/min
- Powerful 5.5kW drive motor
- 675mm feed stroke (multi-indexing)
- Variable Vice pressure
- Hydraulic bundle clamps
- PLC control unit, programmable controls
- Robust, simple to use controls
- Material specification compensation valve
- Powered swarf brush
- Powered swarf conveyor
- Rotary encoder for material component length
- Hydraulic blade tension
- Precise, adjustable hydraulic regulation of the bow descent

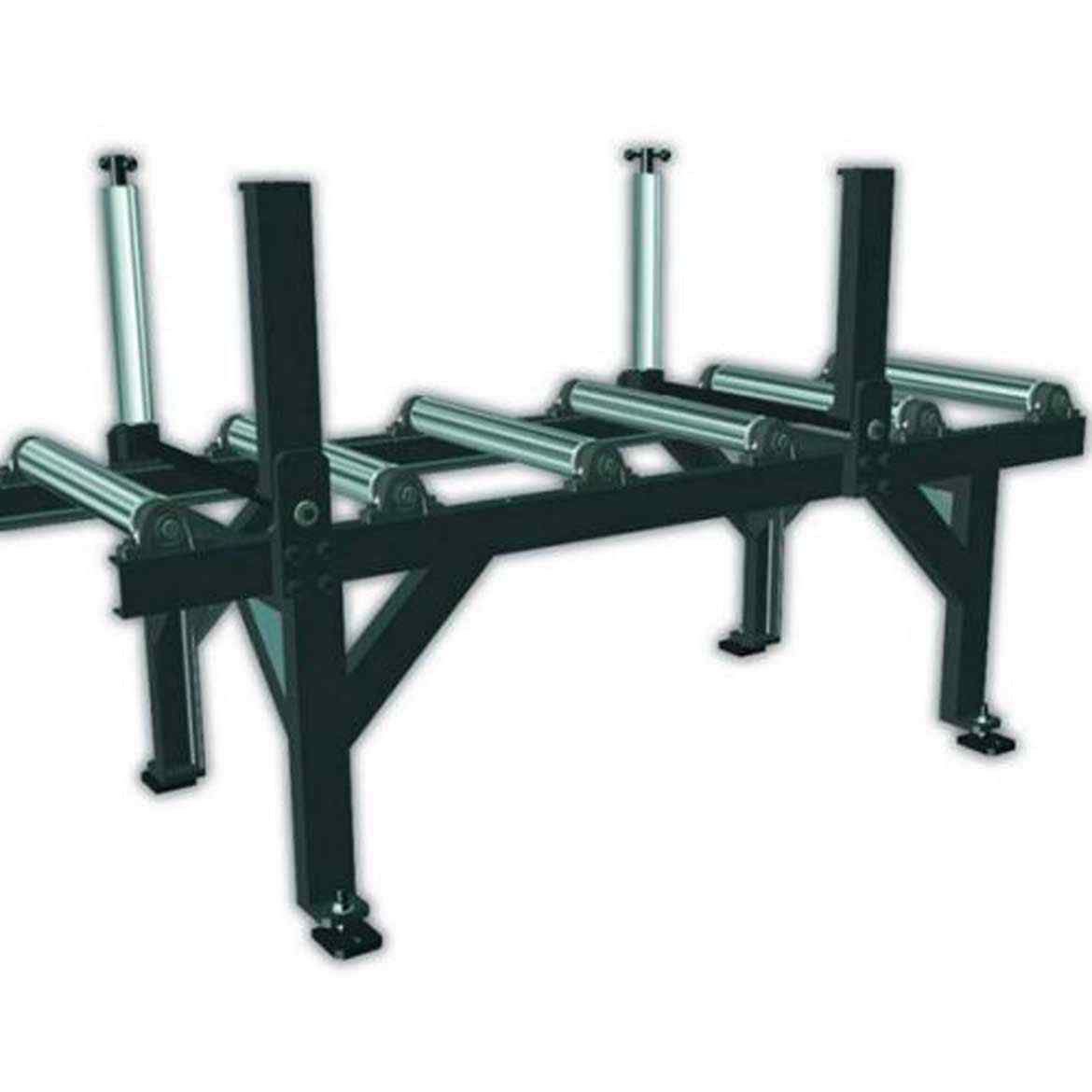

- Material support conveyor with adjustable vertical rollers
Get in touch +44 (0)1536 410999
KARMETAL WOS 600x700 Technical Specifications
| Machine Type | Bandsaw |
|---|---|
| Blade Size | 6700mm × 54mm × 1.6mm |
| Blade Speed | Inverter controlled variable speed 22 ~ 100 m/min |
| Table Height | 750mm |
| Motor | 5.5kW |
| Coolant Motor | 0.2kW |
| Feeding Stroke | 675mm |
| Weight | 3800 |
| 90° | 45° Left | 45° Right | 60° Left | 60° Right | |
|---|---|---|---|---|---|
| Round Section (mm) | 600mm | ||||
| Rectangular Section Vertical (mm) | 580x700mm | ||||
| Square Section (mm) | 580mm |
