MEGA BS330GA
Machine Subcategory

Automatic Horizontal Bandsaw

Overview

This vice feed automatic bandsaw complete with bundle clamps is possibly the UK's most popular automatic bandsaw, now with NC controls!

Standard Specification
  • Heavy duty machine with high specification

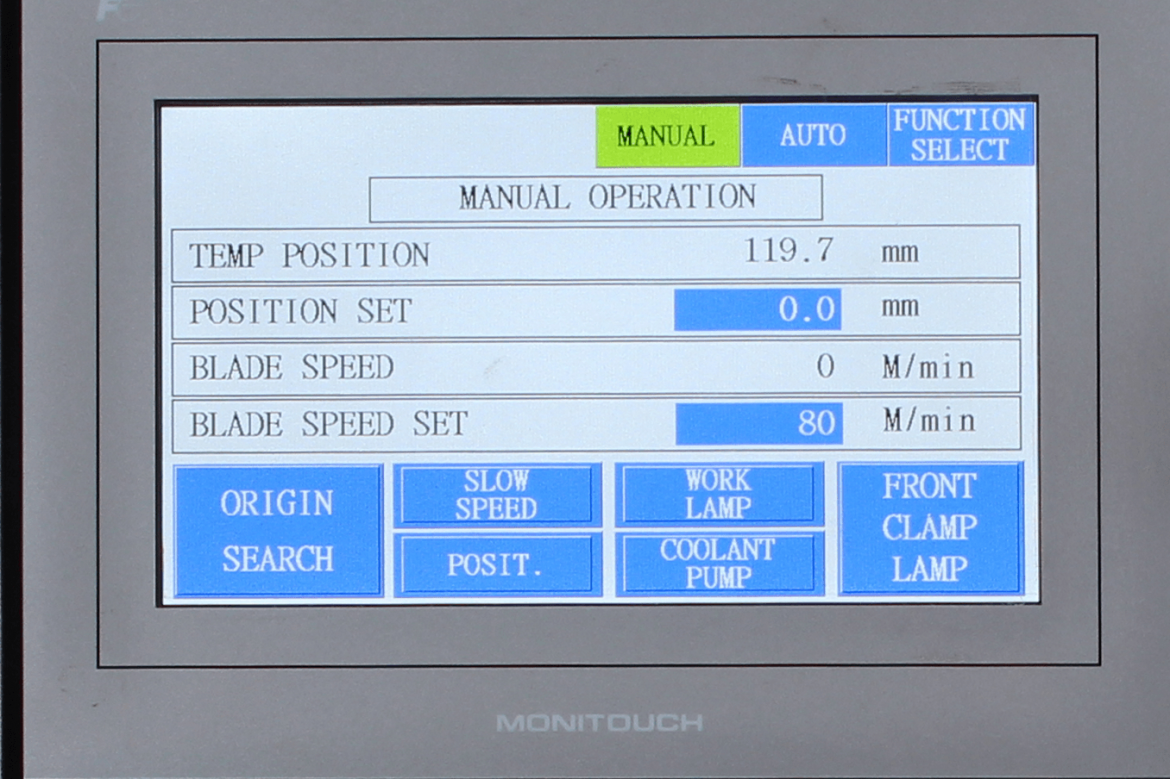

  • NC programmable touch screen controls
  • Variable blade speed control via touchscreen
  • Independent control for cutting rate & pressure

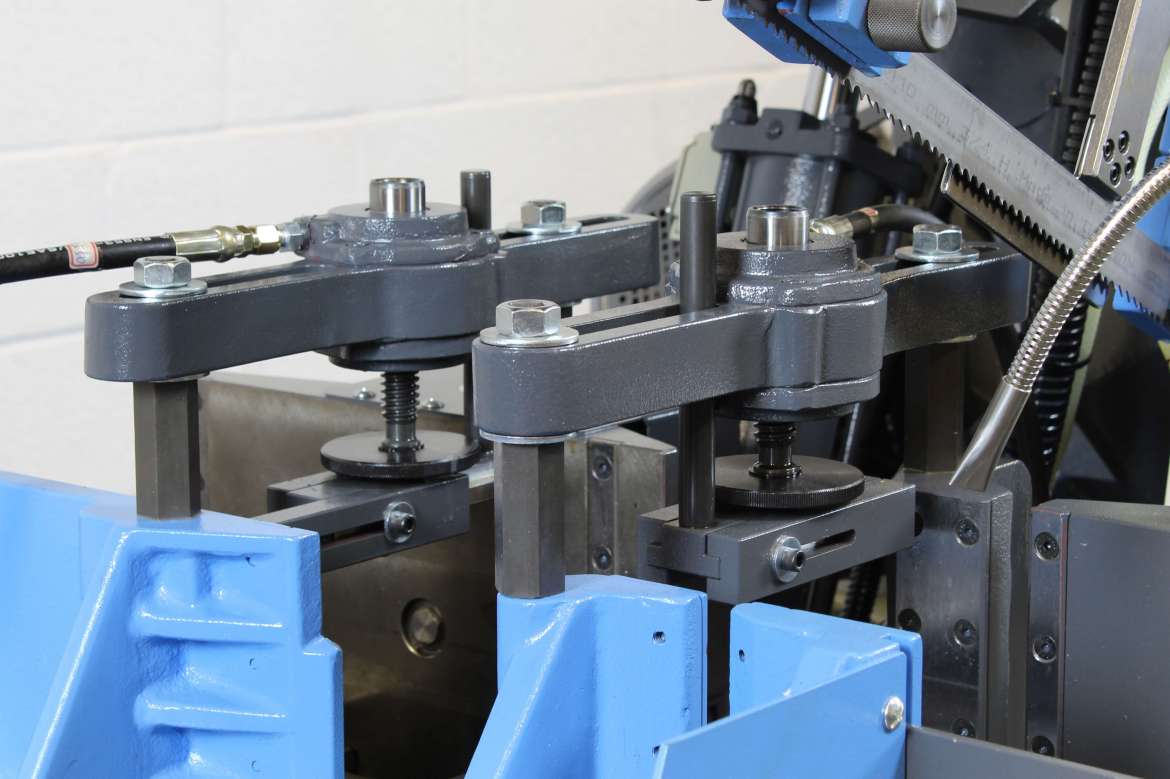

  • Bundle clamps fitted as standard to both front and rear vice for multiple bar cutting
  • Automatic multi pass to facilitate the cutting of components that are longer than the 400mm material feed stroke
  • Split front vice to minimise burr by securing both sides of the material either side of the blade

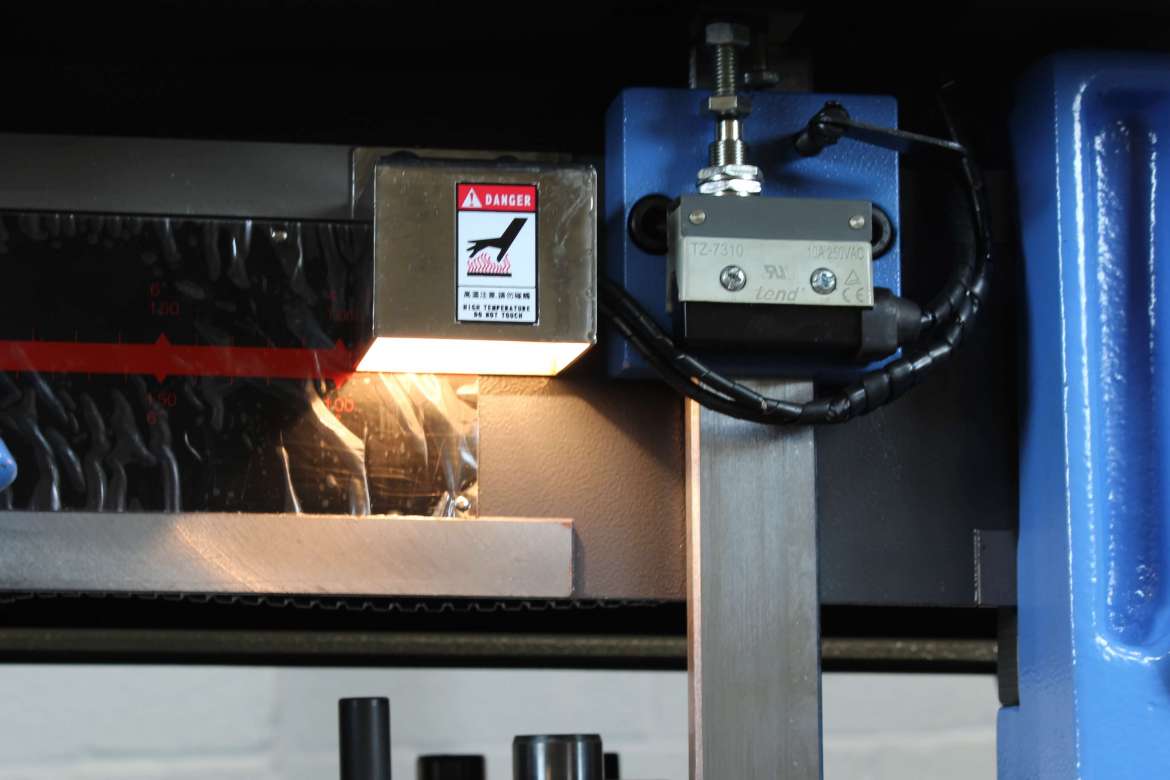

  • Blade monitor to automatically stop the machine in the event of a blade break/jam.
  • 34mm wide blade
  • Cuts solids and sections including stainless steel
  • Hydraulic blade tension

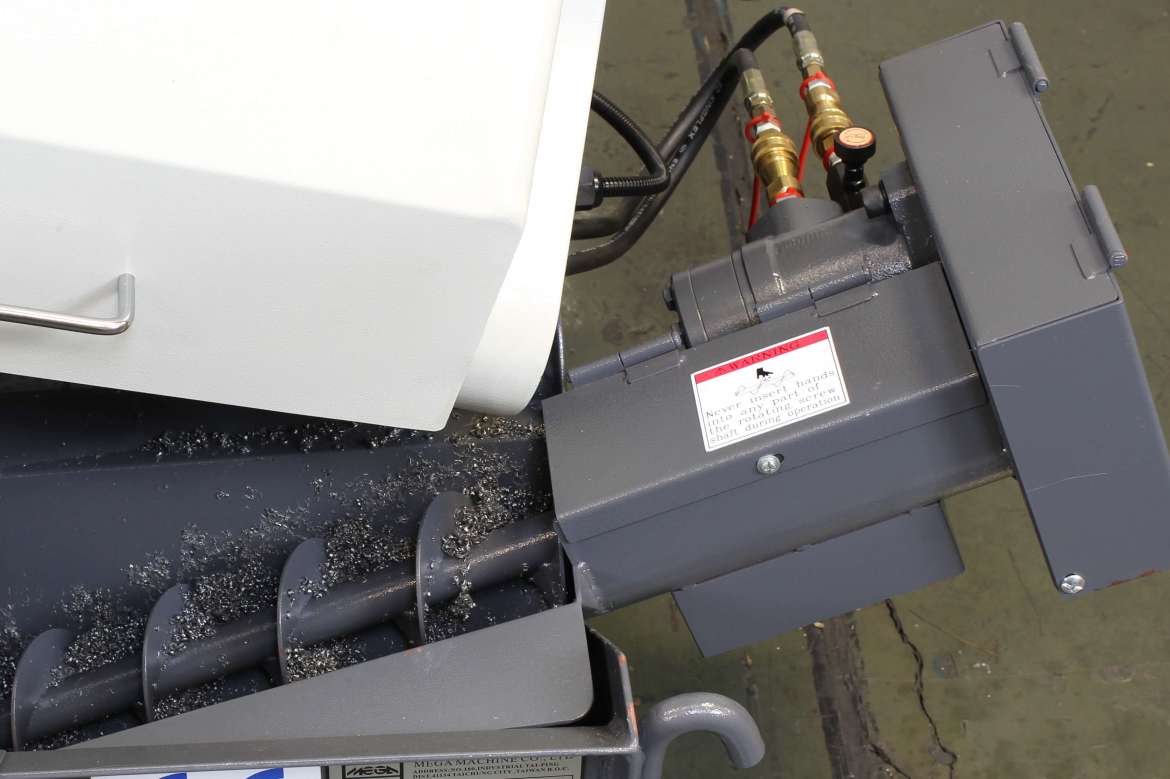

  • Hydraulic swarf conveyor
  • Easy operation with full stroke hydraulic vices
  • High accuracy on squareness and cut length repeatability
MEGA BS330GA Technical Specifications
Manufacturer MEGA
Machine Type Bandsaw
Operation Type Automatic
Material Types Aluminium, Ferrous, Nickel Alloys, Non-Ferrous, Solids
Material Solid
Blade Size 3820 x 34 x 1.1
Blade Speed 25-80 M/Min
Table Height 593mm
Weight 1410
Capacity Solid Round (mm) 330
Capacity Solid Rec (mm) 350 x 250
Capacity Solid Square (mm) 300 x 300
