Machine Subcategory
Manual Horizontal Bandsaw
Standard Specification
- Adjustable 500mm Length Setting Bar
- Adjustable Tension Band Wheel
- Quick action vice for fast clamping
- Heavy duty blade tensioning unit with indicator
- Inverter controlled variable blade speed from 25 to 90 m/min
- Bow swivels up to 45° left, 60° right with easy mitre
- Precision control hydraulic downfeed
- Heavy duty one-piece cast bow
- Turntable bed with easy to read mitre scale
- Substantial vices, quick set lever operation
- Roller blade guides and carbide pads ensure accurate, straight cuts
- Adjustable guide arm
- Re-circulating coolant pump
- Simple, robust controls
- Blade guard with electrical cut-out switch
- Heavy, stable machine base

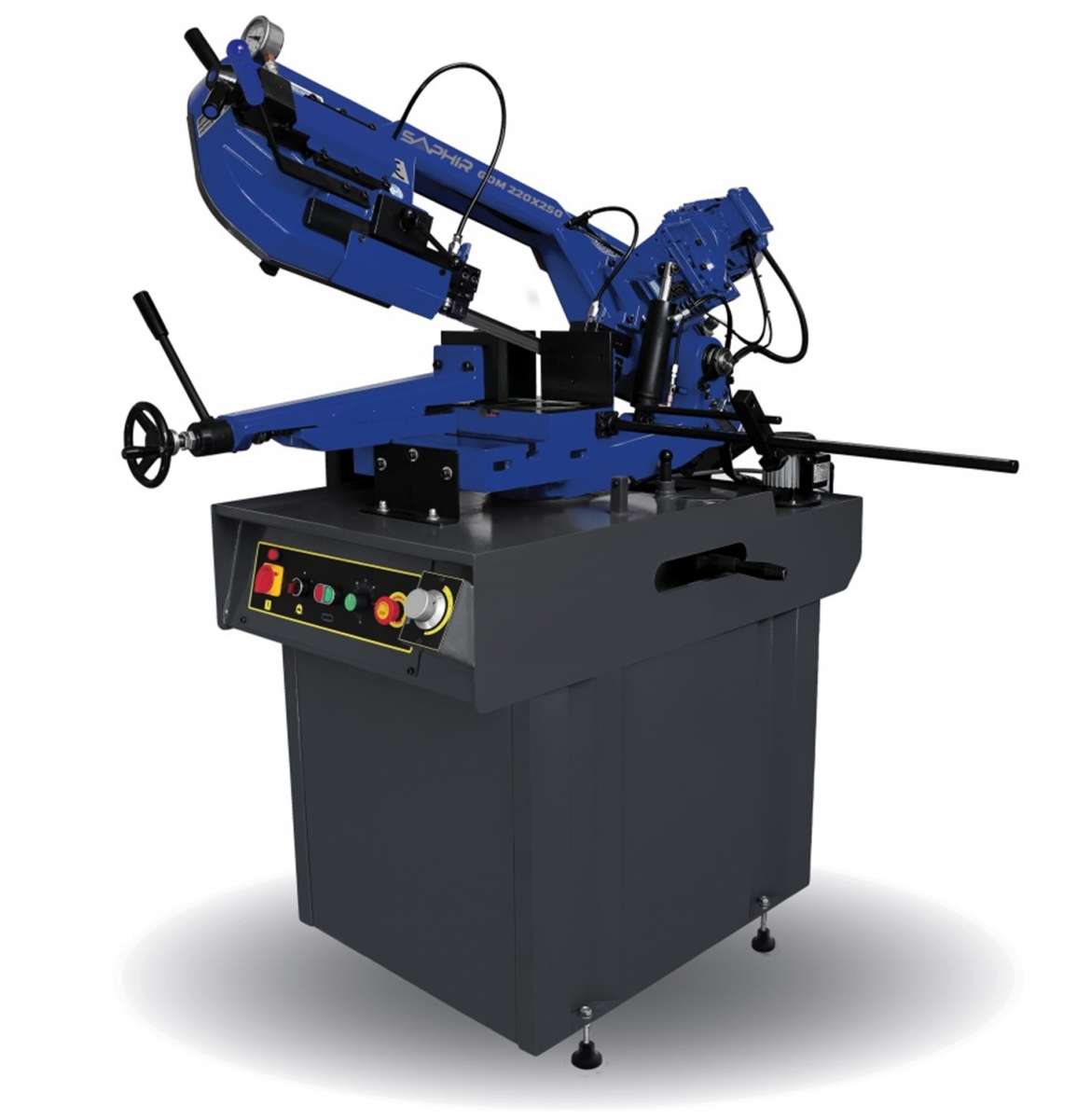

SAPHIR GDM220x250 (SINGLE PHASE) Technical Specifications
|
Machine Type |
Bandsaw |
|
Blade Size |
2520mm × 27mm × 0.9mm |
|
Blade Speed |
Inverter controlled variable blade speed from 25 to 90 m/min |
|
Table Height |
915mm |
|
Motor |
1.1kW |
|
Weight |
250 |
|
90° |
45° Left |
45° Right |
60° Left |
60° Right |
|
Round Section (mm) |
220mm |
140mm |
160mm |
|
95mm |
|
Rectangular Section Horizontal (mm) |
180x250mm |
90x150mm |
140x150mm |
|
75x95mm |
|
Square Section (mm) |
200mm |
120mm |
140mm |
|
75mm |
